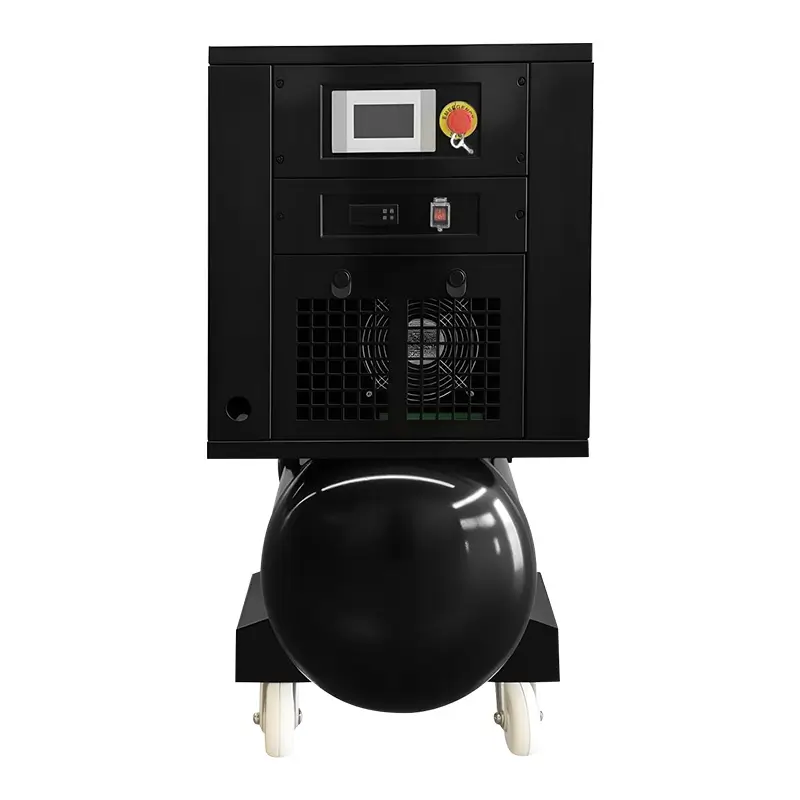

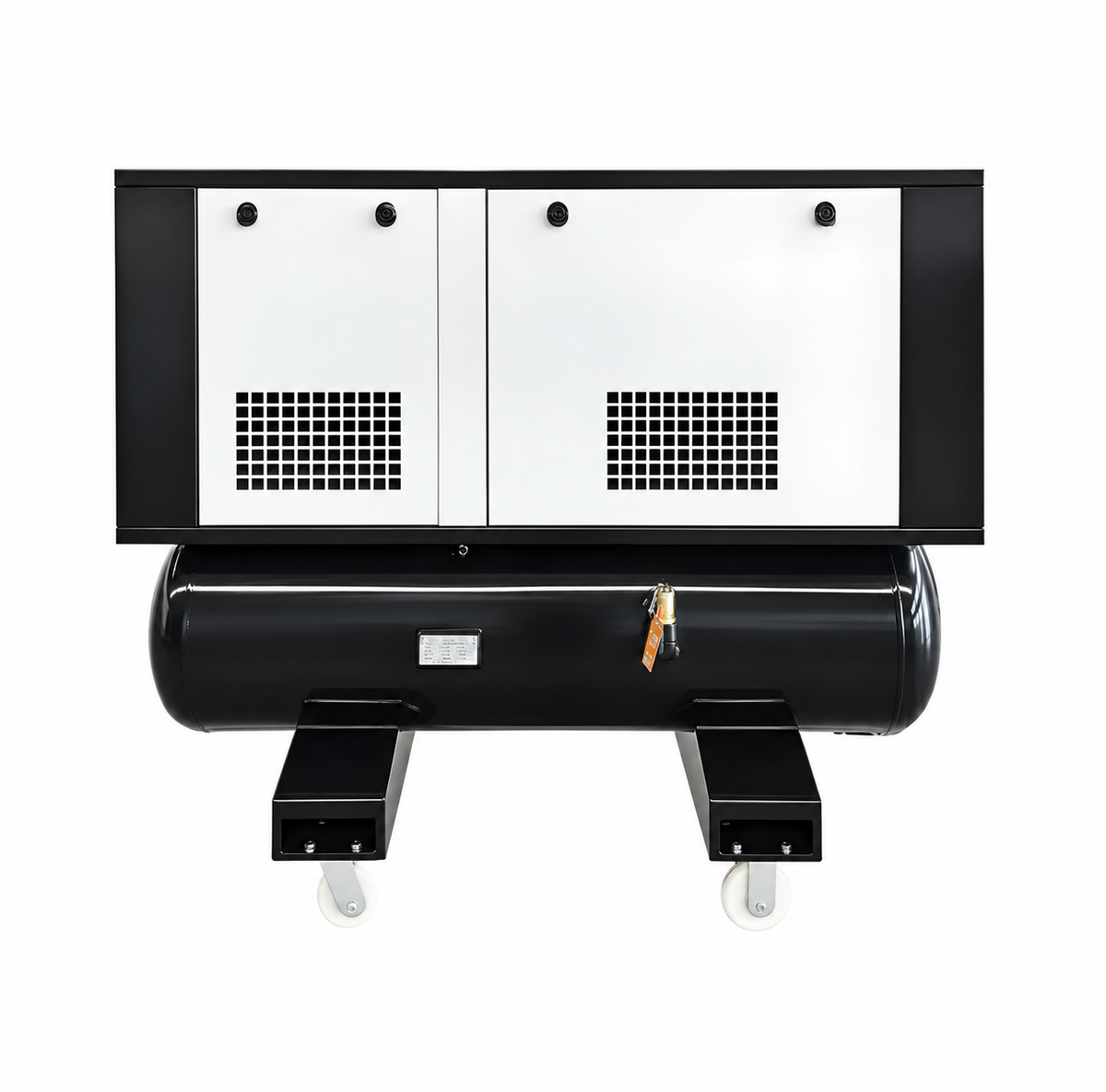

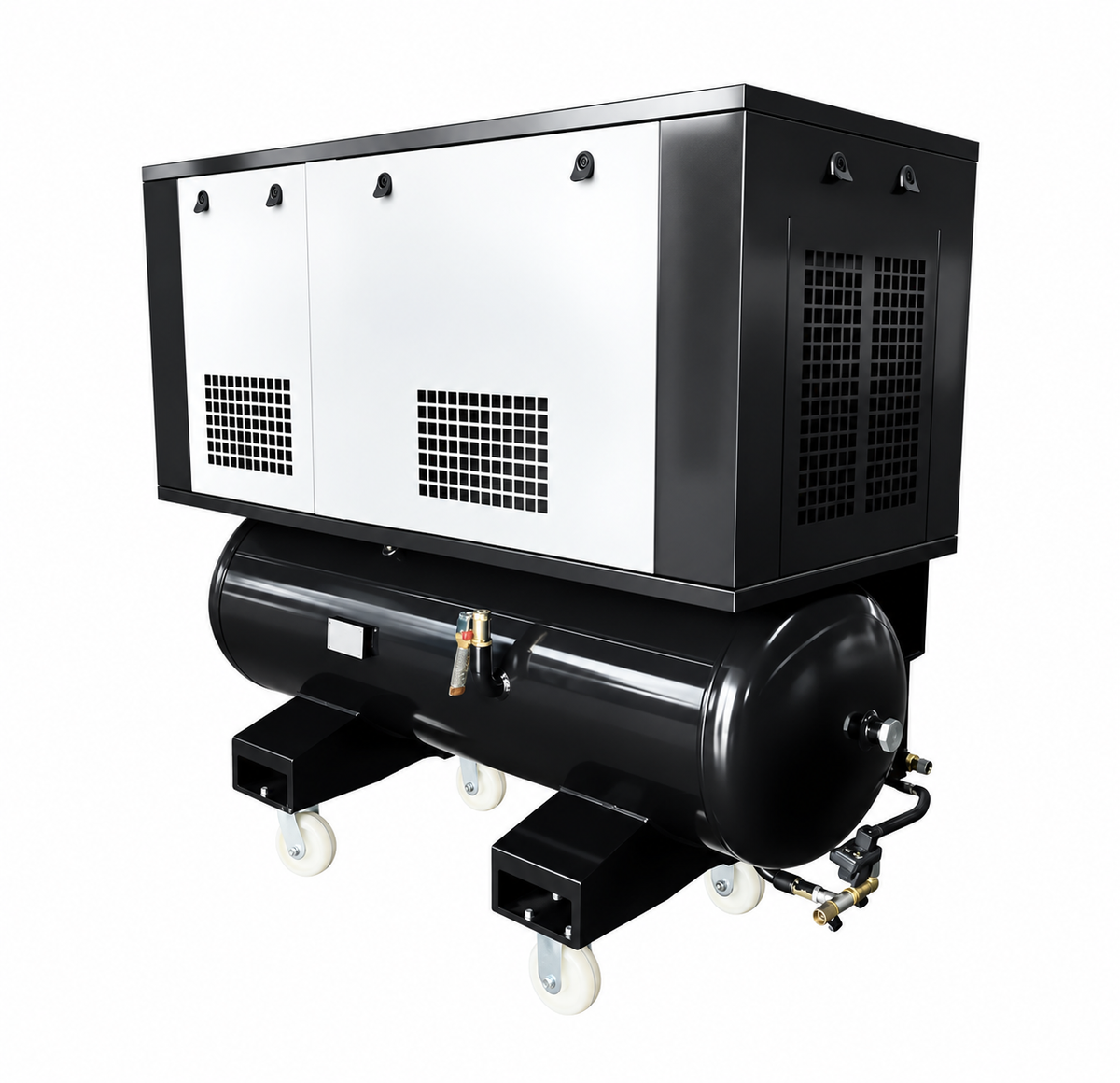

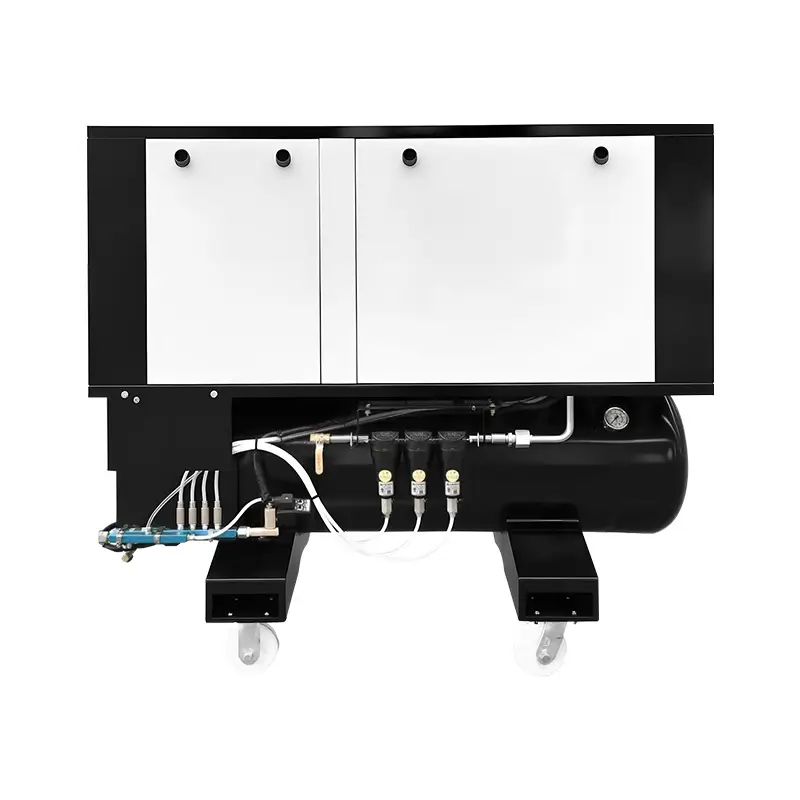

3000W Screw Air Compressor for D Series and F900 Series Laser Cutting Machine

Regular price $3,800.00 USD
Shipping calculated at checkout.


Features:

1. Compact 3kW Rotary Screw Technology

Powered by advanced rotary twin-screw technology, the 3kW compressor delivers stable, continuous-duty compressed air with smooth, pulsation-free airflow—ideal for small to medium-sized industrial applications.

2. All-in-One Space-Saving Design

The system integrates the 3kW screw compressor, air receiver tank, and precision line filters into one compact unit, saving valuable floor space and simplifying installation.

3. Continuous & Reliable Air Supply

Designed for continuous-duty operation, it provides a consistent and reliable compressed air supply for demanding production environments without the frequent cycling associated with traditional piston compressors.

4. Low Noise & High Energy Efficiency

Rotary screw technology delivers smoother and quieter operation while minimizing energy consumption, helping reduce operating costs and creating a more comfortable working environment.

5. Clean, Dry Air – Plug & Play

Built-in high-precision filters and a certified air receiver tank help provide clean, dry compressed air. The integrated system is easy to install and ready to operate with minimal setup.

Critical Applications of 3kW Screw Air Compressor

This versatile compact screw air compressor is widely trusted across various industries requiring constant, clean air supply:

Automotive Repair & Paint Shops: Powers pneumatic wrenches, lifts, and high-quality spray painting guns.

Laser Cutting Machines: Provides stable assist gas pressure for low-power precision fiber laser cutting.

Textile & Packaging: Drives automated packaging lines and pneumatic cylinders.

Laboratory & Dental: When configured with oil-free or high-purity filtration, it delivers ultra-clean air for sensitive instruments.

Why Buy From Us

  • CE、EAC & ASME Certifications
  • Factory Direct Price. Ready to Ship
  • 1-Year Warranty. High Efficiency / Energy Saving
  • Suitable for small to medium factories
  • Installation-free design saves installation costs and time
  • Integrated design reduces floor space by over 50%
  • The procurement cost is lower than purchasing separately



Technical Parameters

Model XV-3/16Y
Cooling Method  Air Cooling
Air Delivery 0.25m³/min
Discharge Pressure 1.6MPa
Safety Valve Setting Pressure Compressor discharge pressure + 0.1MPa
Suction Condition - Temperature 20℃
Suction Condition - Pressure 0.1MPa
Suction Condition - Relative Humidity 60%
Specific Heat Ratio (Cp/Cv) 1.4
Ambient Temperature 2℃ - 45℃
Aftercooler Outlet Temperature  ≤ Ambient temp. + 15℃
Drive Method Direct Drive
Air Delivery Control Capacity Modulation Control
Unit Noise ≤50dB(A)
Unit Vibration ≤5mm/s
Oil Content at Gas Outlet 3ppm
Dust Particles in Discharge Air 0.01
Air Outlet Pipe Diameter R3/4
Main Motor Model ZYT-100-30-3
Main Motor Power 3kW
Motor Speed 2800rpm
Power Supply 380V / 50Hz
Starting Method Variable Frequency Start
Main Motor Insulation Class Class F
Power Cable 6mm²
Grounding Cable 4mm²
Airend (Main Unit) Model DLG-2.2VB
Rotor Profile (Male/Female) 3rd Gen α-type Asymmetric 5:6 Tooth Profile
Screw Life / Bearing Life 300,000h / 100,000h
Refrigerated Dryer - Model TR-0.6X
Refrigerated Dryer - Pressure 1.6MPa(a)
Refrigerated Dryer - Treatment Capacity 0.6m³/min
Refrigerated Dryer - Power Supply Voltage 220V / 50Hz
Refrigerated Dryer - Power 0.18kW
Air Receiver Tank 230L
Filter 005×5 pcs (C/T/A/X/F)
Unit Weight 270kg
Unit Dimensions (L×W×H) 1450×600×1200mm
