Senfeng Tools C-Series Laser Cleaning Machine FAQ The Comprehensive Guide

Answers to the most common questions from C Series users—covering machine setup, parameters, maintenance, and choosing between CT and CG models.

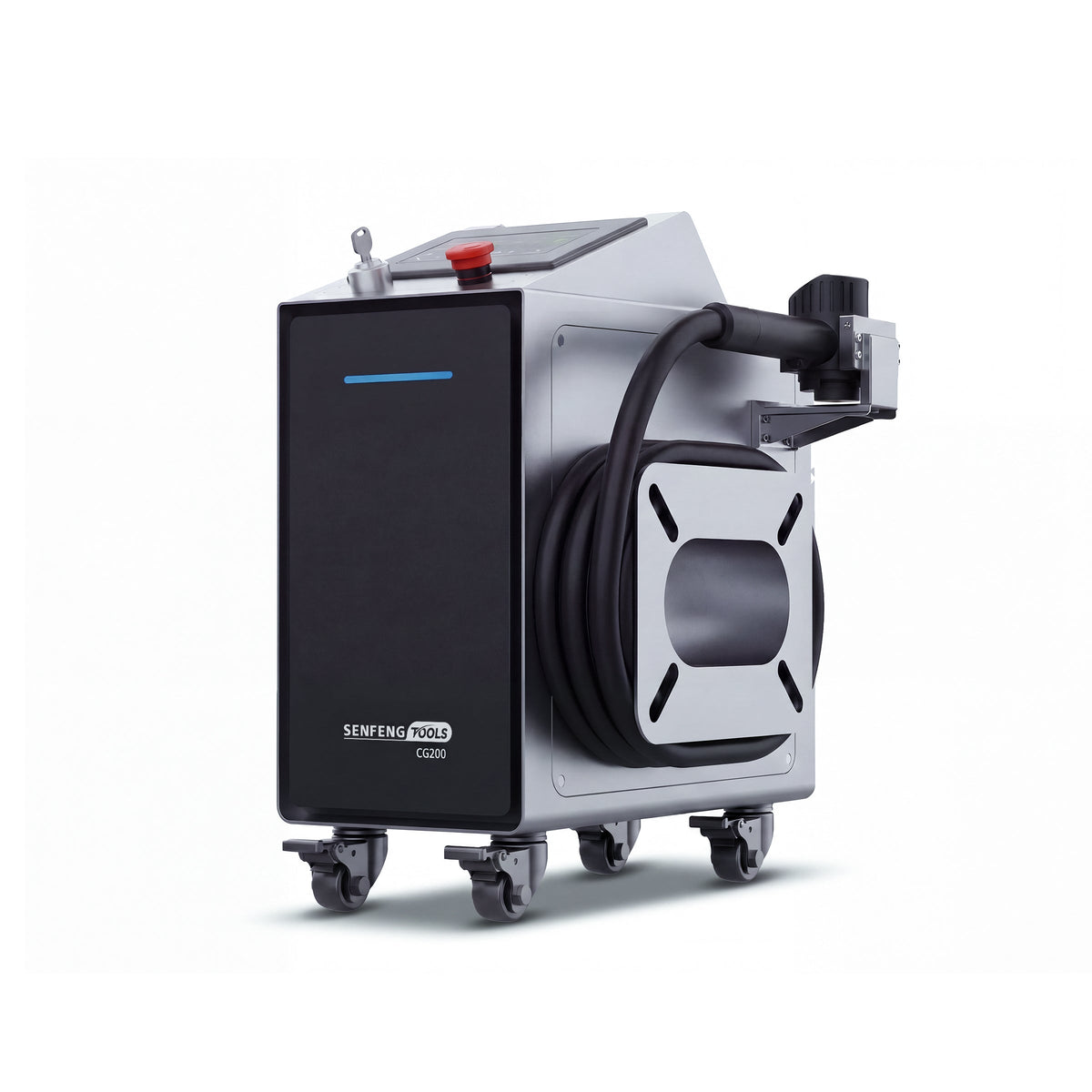

Senfeng Tools C Series is a portable MOPA pulsed laser cleaning machine designed to remove rust, paint, oxide layers, oil, grease, and other contaminants—without chemicals or abrasives and without secondary pollution. Whether cleaning ship hulls, injection molds, structural steel, or old wood, this FAQ covers the questions customers ask most often.

Getting Started — Safety & Machine Setup

Is the C Series safe to operate?

The C Series uses a Class 4 laser, which produces high-intensity laser radiation that can cause serious injury if operated improperly. Follow these safety requirements:

· Never look directly into the laser output when the machine is powered.

· Always wear certified laser safety glasses matched to the laser output power and wavelength (1060–1070 nm).

· Keep the laser output below the operator's eye level.

· Do not operate near flammable materials such as alcohol, gasoline, or ether—the laser beam may ignite them.

· Ensure the machine is properly grounded; the machine uses single-phase AC power.

· Do not open the housing while the machine is operating; never leave the powered machine unattended.

Non-professionals must not start or operate this equipment. Contact the Senfeng technical support team with any safety questions.

What working environment does the C Series require?

· Operating temperature: 0°C to +45°C

· Humidity: 10–95% (non-condensing)

· Cooling: Intelligent air cooling—no external water supply or water piping required.

· Ventilation: Good airflow is recommended; interaction between the laser and material may generate fumes depending on the contaminant.

The air-cooled system means the C Series can be used even at outdoor job sites without a water source—connect the power and start cleaning.

How portable is the C Series?

Very portable. The main unit weighs only 20–22 kg (CT Series) or 20–22 kg (CG Series), while the handheld cleaning head weighs only 0.9–1.3 kg. One person can carry the machine between work locations such as factory workshops, construction sites, shipyards, or mobile repair vehicles.

The 5 m fiber-optic cable (customizable in length) makes it easy to cover the working area around large workpieces.

Model Selection — CT vs. CG

What is the difference between CT and CG models?

Choose CG if you need to remove heavy rust, old paint, oxide layers, or carbon deposits and want stronger removal with fewer scanning passes. CG uses a Gaussian beam with 1.8 mJ pulse energy.

Choose CT if surface quality is critical and substrate damage must be minimized, especially for mold maintenance, electronic-component cleaning, or applications requiring controlled heat input and high cleaning precision. CT uses a flat-top beam with 15 mJ pulse energy.

How does Flat-Top Beam technology differ from a standard Gaussian beam?

Flat-Top Beam technology distributes laser energy evenly across the entire spot, like a “light brush,” allowing gentler and more uniform surface cleaning while reducing substrate damage.

By comparison, a Gaussian beam concentrates most of its energy at the center of the spot, which may increase the risk of localized overheating or substrate damage, especially when processing thin or fragile materials.

Therefore, CG (Gaussian beam, 1.8 mJ) is better suited to heavy cleaning on robust substrates, while CT (flat-top beam, 15 mJ) is better suited to delicate, high-precision cleaning on sensitive surfaces.

Source: C Series product-page FAQ.

What advantages does the C Series have compared with other laser cleaning machines?

The CT300 shows strong performance on key specifications:

15 mJ pulse energy and a 150 mm maximum cleaning width mean a larger area can be covered with fewer scanning passes, potentially providing higher cleaning productivity than 2 mJ or 5 mJ systems.

Operation & Parameter Settings

Is the machine complicated to operate? Is professional training required?

It is not complicated. The C Series includes a process-parameter library with 10 preset cleaning parameter groups covering common materials. Operators only need to select the appropriate mode to start cleaning, so even users without previous laser-equipment experience can get started quickly.

For new or special materials, however, we recommend testing and adjusting power and frequency based on actual cleaning results.

Source: C Series product-page FAQ.

What cleaning patterns are available, and when should I use them?

The C Series includes six cleaning patterns, including square, circular, spiral, and cycloidal patterns. Different surfaces require different scanning paths to achieve more uniform laser-energy distribution and avoid localized heat concentration.

· Square / Rectangle: suitable for large flat surfaces and metal sheets.

· Circle: suitable for curved or round parts, pipes, and similar surfaces.

· Spiral: suitable for concentrated cleaning of stubborn deposits.

· Cycloid: suitable for continuous cleaning of irregular surfaces.

Select the cleaning pattern from the Scan Type menu and adjust Outer Radius and Int Radius to set the pattern size.

📺 Video tutorial: Senfeng Tools C Series MOPA Laser Cleaning Machine User Guide (official unboxing and complete operation demonstration).

How do I set laser power, frequency, and pulse width?

· Laser Power: sets laser output power. Start at a lower power and gradually increase it until contaminants can be removed effectively.

· Laser Frequency: sets pulse frequency. Higher frequency = more pulses per second = can match higher galvo speeds, but the corresponding single-pulse energy is lower (power = frequency × single-pulse energy), so cleaning force is weaker. Set frequency according to the cutoff frequency for the selected pulse width.

· Pulse Width: sets pulse duration (20–500 ns). Shorter pulses can reduce heat input; longer pulses can provide higher single-pulse energy.

Best practice: Start with low power and test a small area, then gradually increase power until effective cleaning is achieved while avoiding substrate damage.

The Advanced Parameters menu (password: 258369) allows upper and lower parameter limits to be set, helping prevent incorrect settings caused by operator error.

How do I choose the correct field lens?

The Lens Selec menu in the software provides different field lenses such as F160, F210, F254, and F330. Different lenses correspond to different scan ranges and XY scaling factors.

Choose a field lens that matches the size of your common workpieces. Smaller lenses provide more concentrated energy, while larger lenses cover more area per scan.

What are Hatch Distance and Galvo Speed?

· Hatch Dist (Hatch Distance): controls the fill density of the scan pattern (range 0–50). A smaller value = denser fill = more thorough cleaning, but slower speed. Larger values can be used for light contamination; for heavy rust, reduce the value appropriately.

· Galvo Speed: sets the galvo scanning speed. Higher speed = faster coverage, but shorter laser dwell time at each position. Balance it with laser power and hatch distance.

Image suggestion: Use a screenshot of the control screen from the user manual and label Param Name, Hatch Dist, Galvo Speed, Scan Type, Laser Power, and other parameter locations.

Materials & Applications

How effective is laser cleaning? What are its advantages over traditional cleaning?

Laser cleaning offers high precision, down to the micron level, and uses a non-contact process, so it does not directly contact the substrate surface and can reduce damage to the underlying material.

Compared with traditional methods such as sandblasting, chemical stripping, and grinding, laser cleaning offers:

· More environmentally friendly—no chemical solvents or abrasive waste.

· High efficiency—faster removal with less manual labor.

· No abrasive media—no abrasive-media costs and less cleanup afterward.

· Non-contact cleaning—better preservation of substrate surface integrity.

Source: C Series product-page FAQ.

What materials or contaminants can the C Series clean?

What materials or situations are not recommended for cleaning?

· Highly reflective surfaces, such as mirrors or polished gold/copper, may produce hazardous specular reflections.

· Materials with unknown characteristics should first be tested on a small area; some materials may discolor or melt after absorbing laser energy.

· Sealed/enclosed containers must never be laser-cleaned if they may contain pressure or flammable substances.

MOPA lasers allow independent adjustment of pulse width and frequency, enabling energy output to be adapted to different materials. Regardless of material, always perform a small-area test first.

📺 Video tutorial: High-Speed MOPA Pulsed Laser Cleaning: Removing Heavy Oxide Layers and Dirt — short C Series demonstration.

Maintenance & Troubleshooting

Is the machine expensive to maintain?

No. The C Series uses air cooling and a simplified structure, so routine maintenance requirements are low.

The main consumable is the protective lens, which is relatively inexpensive and easy to replace, helping reduce long-term operating costs. The machine also requires no chemical consumables or abrasive media and has no water-cooling components to maintain.

Source: C Series product-page FAQ.

How do I maintain the lens and optical path?

· Check the lens regularly. If contamination is found, clean it promptly with alcohol and a lint-free lens cloth.

· Never touch the lens directly with your hands—skin oils may contaminate the lens coating.

· Galvo lenses are consumables and are not covered by warranty.

· Do not turn off the galvo power while the machine is operating, as this may damage the lens.

· Do not plug or unplug power or control cables while the galvo is powered.

· Unauthorized disassembly of the galvo housing will void the warranty.

· Before operation, confirm that the protective cap on the laser output end has been removed. Operating the machine with the cap in place may cause irreversible damage to the fiber output head.

What are common faults and how can I resolve them?

If you cannot resolve the issue yourself, contact the Senfeng customer service team. Do not ship the product back without prior confirmation from Senfeng.

Warranty & Service

What does the warranty cover?

The complete machine comes with a 1-year warranty covering product defects caused by materials or workmanship under normal use. Repaired or replaced parts remain covered for the remaining period of the original warranty. Report faults within 31 days of discovery.

What will void the warranty?

· Unauthorized modification, opening, disassembly, or alteration

· Damage caused by misuse, negligence, or accidents

· Operation outside the product's specified limits

· Failures caused by user software or interfaces

· Improper installation, maintenance, or operation under abnormal conditions

· Accessories and fiber-optic connectors are not covered

How do I obtain technical support?

Email info@senfengtools.com or contact the Senfeng technical support team. After receiving and confirming your feedback, the support team will follow up. If the issue cannot be resolved remotely, you may be asked to return the product for inspection—but prior authorization is required.

Workshop Electrical & Current Requirements

What electrical and current requirements does the workshop have?

The C Series laser cleaning machine uses single-phase 220V AC / 50Hz power, with maximum power consumption below 1500W. For safe and stable operation, the workshop electrical setup should meet the following requirements:

Important: Do not share the circuit with other high-power equipment to avoid voltage fluctuations affecting laser stability. Replace fuses only with the same type and rating. Before connecting or disconnecting external cables, turn off the main power for at least 5 seconds and have a qualified person perform the work. The machine housing must be reliably grounded. A surge protector is recommended to protect precision electronic components from power surges. The galvo motion-control card requires a ≥2A, 9–15V power supply.

Standard Accessories

What standard accessories are included with the C Series?

The above is the standard factory configuration. Specific configurations may vary slightly by model (CG200/CG300/CT200/CT300); refer to the actual product received.

Replacement & Optional Accessory Purchasing Guide

How do I purchase replacement and optional accessories?

Some accessories are consumables or optional items and require periodic replacement or upgrading.

Consumables: Protective lenses are core consumables; we recommend keeping 2–3 spare lenses on hand. Clean contaminated lenses promptly with alcohol and a lint-free lens cloth. Replace immediately if the coating is damaged or the lens is cracked. Galvo lenses are consumables and are not covered by warranty. Contact Senfeng for replacement and never disassemble the galvo housing yourself, as this will void the warranty.

Optional accessories: Field lens—F254 is standard; F160 is available for smaller high-precision work, F330 for larger-area cleaning, and F210 is also available. Fiber-optic cable—standard length is 5 m and longer lengths can be customized. Protective equipment includes laser safety glasses, protective respirators, protective gloves, and other PPE.

Purchasing: info@senfengtools.com. When contacting us, provide the machine model (CG200/CG300/CT200/CT300) and the required accessory name for faster matching.

Strongly recommended: use original factory accessories. Non-original accessories may void the warranty and may affect machine performance and safety.

Protection & Safety Recommendations

What protective measures are required when operating the C Series laser cleaning machine?

The C Series is a Class 4 laser product (high-intensity laser radiation). Proper protection is essential for operator safety.

Work-area protection

· The work area must be equipped with appropriate fire-extinguishing equipment.

· Do not store flammable or explosive materials such as alcohol, gasoline, or ether around the workbench or machine.

· Maintain good ventilation; a fume-extraction system is recommended to remove smoke and dust generated during laser cleaning.

· The laser installation room should have an interlocked door and warning signs, with a designated laser safety area.

· Never operate the laser in a dark environment.

· Non-professionals must stay away from the machine.

Important: Laser radiation is invisible, so take extra care during operation and avoid or minimize specular reflections. Laser intensity is sufficient to burn skin, clothing, and painted surfaces and can ignite flammable substances such as alcohol, gasoline, and ether. Interaction between the laser and material may generate high-intensity ultraviolet or visible radiation; protective shielding must be installed to prevent injury to the eyes or other parts of the body.

Safety standards reference: ANSI Z136.1 (U.S. laser safety standard), IEC 60825-1 (international laser product safety standard), and 21 CFR 1040.10 (U.S. laser product performance standard).

Need the complete user manual?

Download the CG200-300 and CT200-300 user manuals, or visit the C Series product page for complete product specifications.
