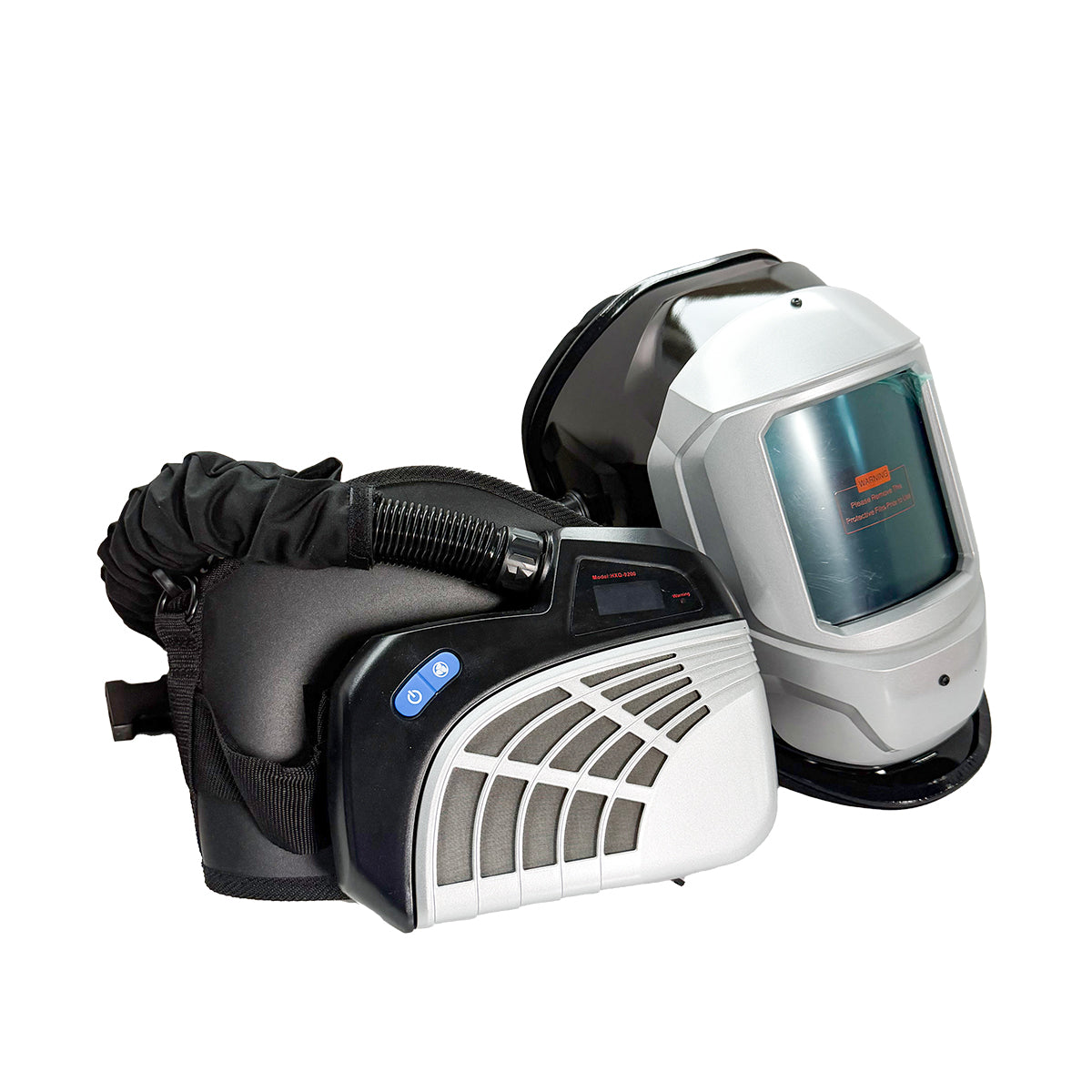

Powered Air-Purifying Respirator Helmet for Laser Work
Regular price
$459.00 USD
Unit price
Unavailable
Shipping calculated at checkout.
Powered Air-Purifying Respirator Helmet for Laser Work is backordered and will ship as soon as it is back in stock.
- OD8+ Laser Eye Protection: Blocks 950–1100 nm fiber laser radiation to help protect your eyes during laser welding and cleaning.
- TH3-Powered Air Purification: Filters welding fumes, metal dust, and laser smoke with up to 99.97% efficiency.
- 2-in-1 Professional Protection: Designed for both laser welding and laser cleaning, eliminating the need to switch between different helmets.
- Up to 10 Hours of Runtime: 6600mAh Long-lasting battery supports powered airflow throughout a full work shift.
- Comfortable for Extended Wear: Lightweight ergonomic harness and adjustable straps provide a secure, comfortable fit for 8–10 hours of use.
Respirator Technical Specifications：
| Component | Parameter | Specification |
|---|---|---|
| Blower Motor | Motor Type | Variable-Speed Brushless DC Motor |
| Operating Voltage | DC 8.4 V | |
| Rated Power | Approx. 16 W | |
| Noise Level | <60 dB | |
| Motor Service Life | >50,000 hours | |
| Rated Airflow | 170–230 L/min | |
| Filter Cartridge | Dimensions | 174 × 109 mm |
| Filtration Accuracy | 0.3 μm | |
| Filtration Class | TH3 | |
| Sealed Shelf Life | 3 years | |
| Storage Temperature | −10°C to +55°C | |
| Storage Humidity | <80% RH | |
| Storage Requirements | Store sealed in a dry, ventilated environment free from corrosive substances and contaminants | |
| Breathing Hose | Material | Food-Grade PU |
| Diameter | Ø35 mm | |
| Flexibility | Maintains smooth airflow even when bent 360° | |
| Additional Features | Excellent airtightness, flexible and lightweight | |
| Battery | Battery Type | Rechargeable Lithium Battery |
| Voltage | 7.4 V | |
| Capacity | 6,600 mAh | |
| Recharge Cycles | ≥500 cycles |
Helmet Technical Specifications：
| Parameter | Specification |
|---|---|
| Filter Model | LY800E |
| Filter Size | 133 mm × 114 mm × 10 mm |
| Active Viewing Area | 100 mm × 83 mm |
| Light Shade | DIN 3 |
| Dark Shade | DIN 5–DIN 9 / DIN 9–DIN 13 |
| Dark Shade Adjustment | External, stepless adjustment |
| Switching Time | 1/10,000 s ±20% |
| Sensitivity Adjustment | Stepless control |
| Delay Time | 0.1–1.0 s |
| Power Supply | Lithium battery + solar power |
| Rated Lithium Battery Capacity | 600 mAh |
| Replaceable Lithium Battery | Yes |
| Operating Temperature | −5°C to +55°C |
| Arc Sensors | 4 |
| UV/IR Protection | DIN 13 |
| Grind Mode | Yes |
| Cut Mode | Yes |
| Low-Battery Indicator | Yes |
| Test Function | Yes |
